S6 ImmunoStack™

The S6 ImmunoStack™ is a microtiter plate loading system that transfers up to 50 plates per run to and from ImmunoSpot® Analyzers for automated scanning and analysis.

Designed specifically for handling 96- and 384-well plates, the ImmunoStack™’s small footprint makes it an attractive alternative to our more advanced automated systems that have been designed to handle up to 400 plates.

Skip to the end of the images gallery

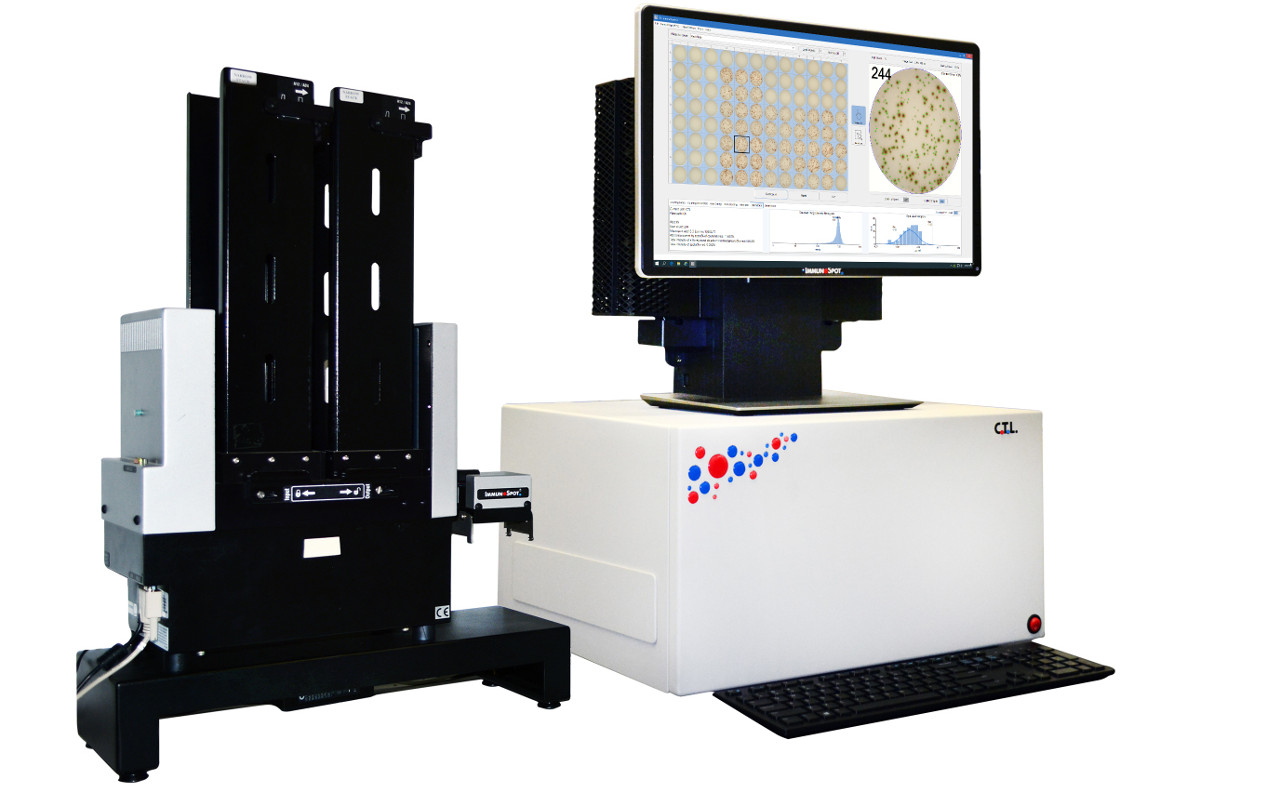

main product photo

Skip to the beginning of the images gallery

Product Specifications

Specifications

Performance

Plate Exchange Time: < 33 seconds

Plate formats

96- & 384-well plates (Maximum plate height: 14.6 mm)

Interface

Computer Interface: RS-232, USB

Power requirements

Voltage: 120/240 V AC, 60/50 Hz

Regulatory

CE and TUV marked. RoHS compliant

Operating temperature

18 °C to 40 °C (64.4 °F to 104 °F)

Humidity

For operation in noncondensing humid environment Maximum relative humidity of 80% at temperatures up to 31° C

Dimensions

Stacker Unit Alone

Dimensions (H x W x D):
35.6 cm × 17.8 cm × 46.9 cm
14 in × 7 in × 18.5 in

Weight:
10.9 kg (24 lb)

50-plate Stack Height: 27.3 cm

30-plate Stack Height: 17.2 cm

Desktop Shelf

Dimensions (H x W x D):
29.1 cm × 22.4 cm × 60.7 cm
11.4 in × 8.8 in × 23.9 in

Weight:
3.2 kg (7.0 lb)

Tower Shelf

Dimensions (H x W x D):
9.5 cm × 22.4 cm × 60.7 cm
3.8 in × 8.8 in × 23.9 in

Weight:
1.6 kg (3.5 lb)

Optional components (sold-separately)

30- or 50- Plate Stacks

Barcode Reader

IQ/OQ
