Mouse IFN-γ/TNF-α/IL-17 Three-Color FluoroSpot

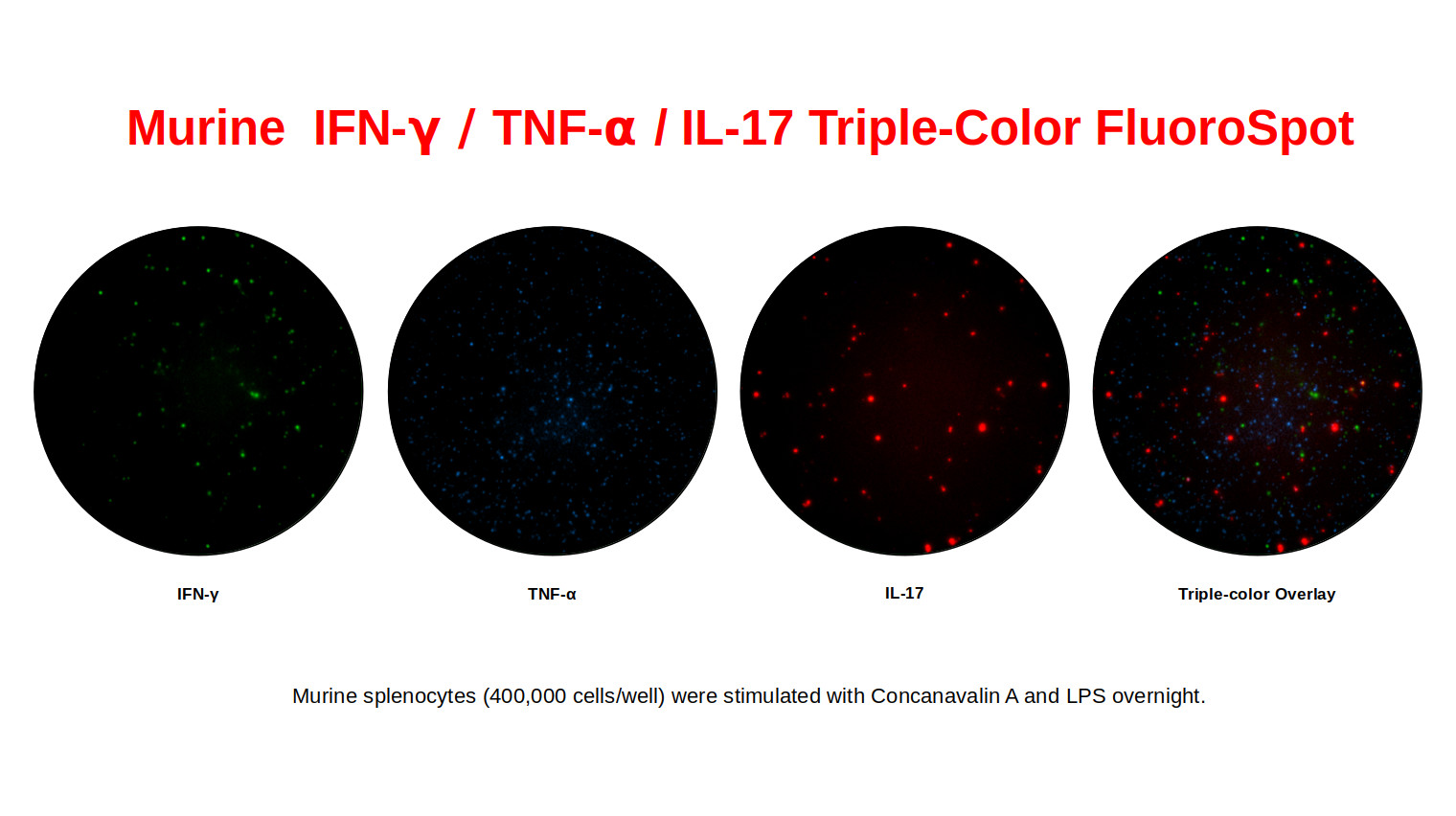

The ImmunoSpot IFN-γ/TNF-α/IL-17 assay is the first ever triple color mouse FluoroSpot

Detect cells secreting each cytokine individually or in combination(s) with accuracy comparable to single-color (single cytokine) analysis

Stimulated effector cells can be detected in frequencies as low as one in a million, allowing the enumeration of rare polyfunctional cells.

Analysis of the ImmunoSpot triple color FluoroSpot requires a fluorescence capable analyzer with the appropriate filters and light sources. CTL recommends any of the following Series 6 analyzers: FluoroCore, Ultra, Universal, Ultimate. (ImmunoSpot v7.0 or higher software is recommended for accurate analysis). Contact us now to ensure your analyzer has the proper configuration, or inquire about our Plate Scanning Services

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Details

CTL offers the ONLY COMPLETE kit that comes with everything you need – ALL FROM ONE SOURCE!

Capture kits

This ImmunoSpot® Capture kit includes diluents, serum-free assay medium and either capture antibodies for each cytokine and low autofluorescence PVDF-membrane plates or pre-coated low autofluorescence PVDF-membrane plates.

Detection kits

This ImmunoSpot® Detection kit contains detection antibodies and fluorochrome conjugates that bind to the secreted cytokine of interest. The fluorochrome conjugates contain proprietary dye systems for fluorescence detection of the specific cytokine by scanning and analyzing the emitted wavelength of the fluorochrome(s) using an ImmunoSpot® fluorescent Analyzer.

Components	Catalog #
IFN-γ/TNF-α/IL-17 Capture Kit	mT3003F
IFN-γ Detection Kit	mT02
TNF-α Detection Kit	mT13
IL-17 Detection Kit	mT31
